COONARA SETTLER C500

COONARA SETTLER C500

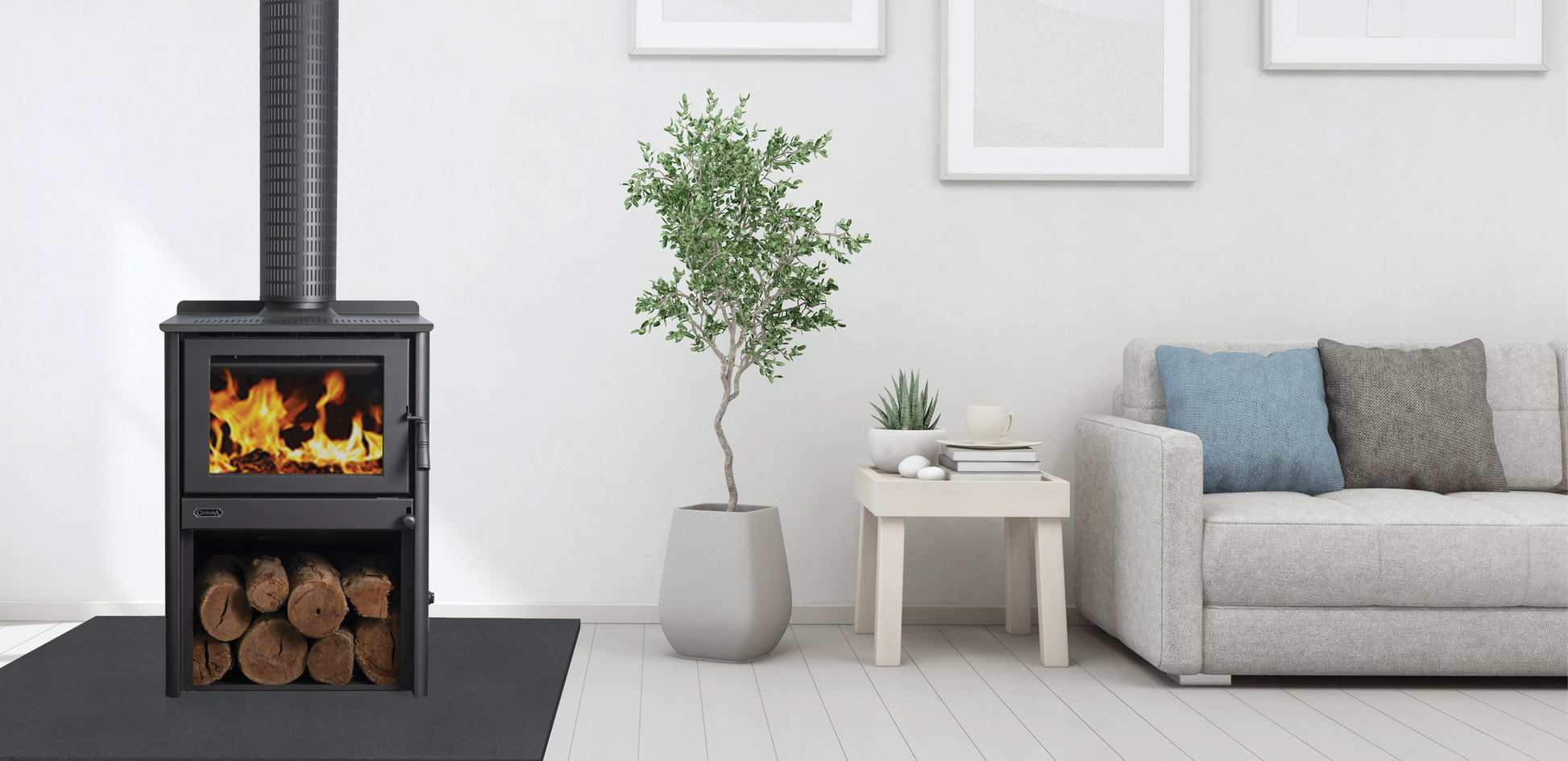

The Settler C500 Ranch is a recent addition to the Coonara range. A good size heater to heat up to 22 squares* with an added bonus of a storage area at the bottom to keep your wood handy and dry.

Standard Features

Where tradition meets innovation.

• Australian made and owned

• Glass size 433mm wide 312mm high

• 3 speed fan included - must be used while heater is operating. Refer Owners Manual

• Standard Colour – charcoal

• Side panels come plain or with trees

• Durable cast iron lined box

• 10 year firebox warranty

Dimensions

SPECIFICATIONS
  • HEATING CAPACITY UP TO SQUARES 22 squares
  • PARTICULATE EMISSIONS (G/KG) 1.3 G/Kg
  • AVERAGE HEATING EFFICIENCY 72.0
  • AVERAGE PEAK POWER (KW) 12Kw

  • FIRE BOX DIMENSIONS (MM) 400Hx470Wx395D

  • OVERALL DIMENSIONS (MM) 945Hx650Wx565D

  • BACK OF HEATER TO CENTRE OF FLUE (MM) 165

  • CLEARANCE TO COMBUSTIBLE MATERIALS (MM) Rear: 75 Side: 235 Corner: 50

  • HEARTH DISTANCE (mm)Either side of door opening: 200Front: 375

  • DESPATCH WEIGHT (KG) 140
