Quadra-Fire

EXPEDITION II FIREPLACE

EXPEDITION II FIREPLACE

FIRE PLACE INSERTS

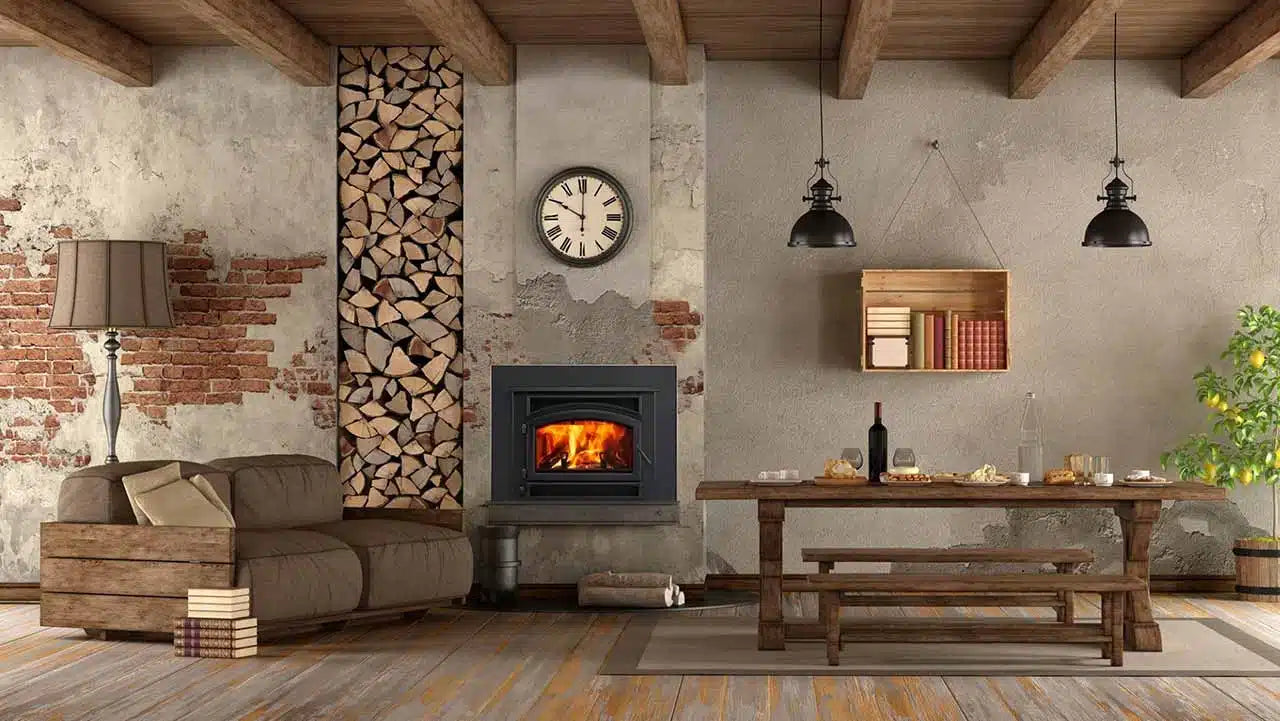

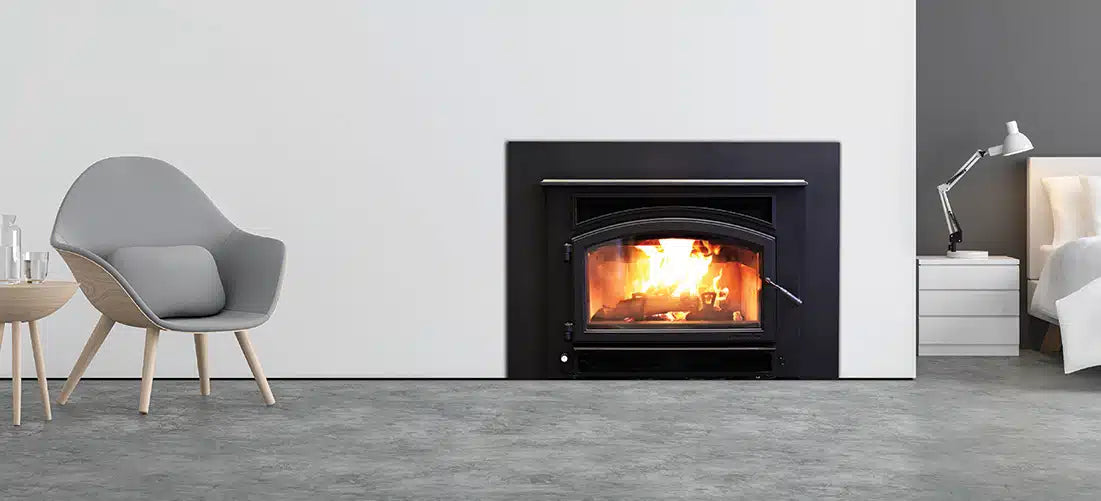

The Quadra-Fire Expedition II is the focal point to any area. A traditional fireplace, sleek in design.

Quadra-Fire’s wood fireplace inserts can be installed into either an existing brickwork chimney, or into a new build using the optional zero clearance box.


Standard Features

FEATURES

• Avg. Burn Time: Up to 8 hours
• Avg. Efficiency: 61%
• Peak Efficiency: 78%
• Emissions: 1.4gms/kg
• Heating Capacity: Up to 240sqm
• Max Log Length: 520mm

• Automatic Combustion Control (ACC)
• Quadra-Fire’s patented four-point burn system
• Solid 6-8mm steel construction
• Tuned for optimum burn time and performance
• Most comprehensive warranty on the market

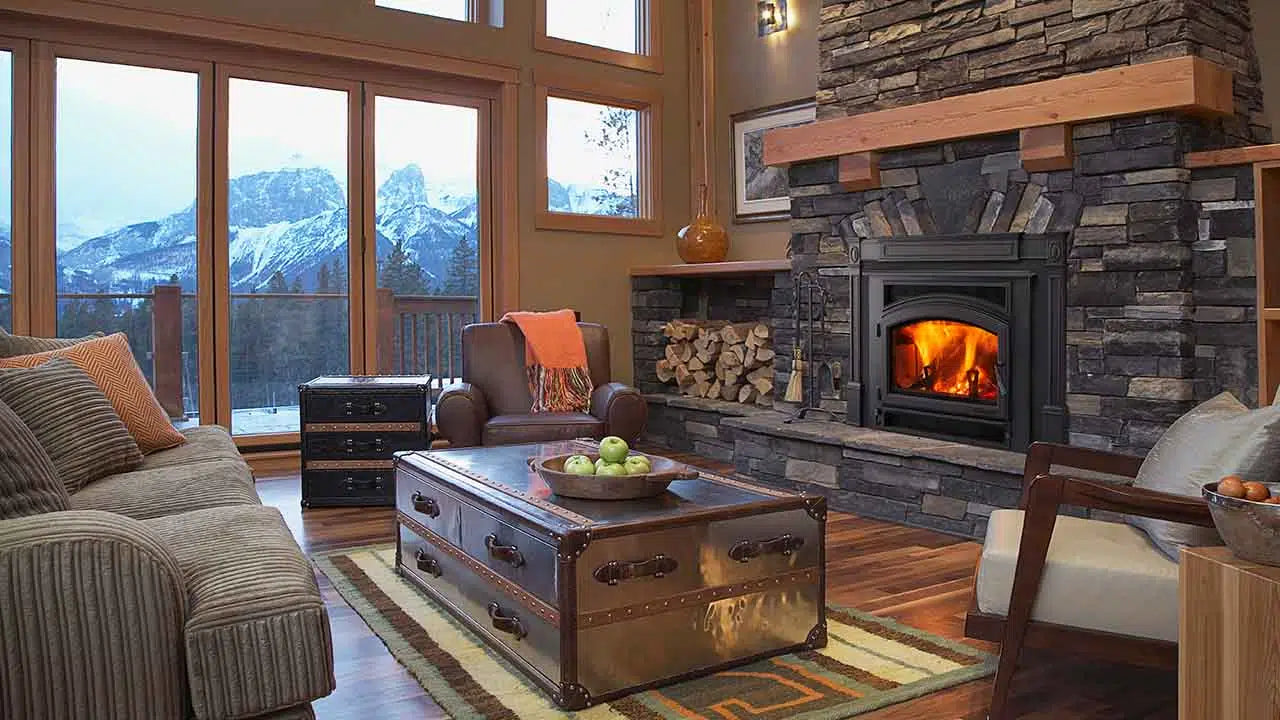

• Optional Cast Iron Surround

Product Brochure

Dimensions

• Width 1086mm

• Height 787mm

• Depth 475mm

• Weight 185kg

• Max burn time

• Up to 8 Hours

• Heating Capacity

• Up to 240msq

• Max log length 502mm


CLEARANCES – STRAIGHT BACK AGAINST WALL

  • Back wall to fire 175mm
  • Side wall to fire 300mm

CLEARANCES – CORNER INSTALLATION

  • Wall to fire 155mm
View full details
